Customized Pipe Expansion Joint Flange Type Rubber Bellow Catalogue
Product Description

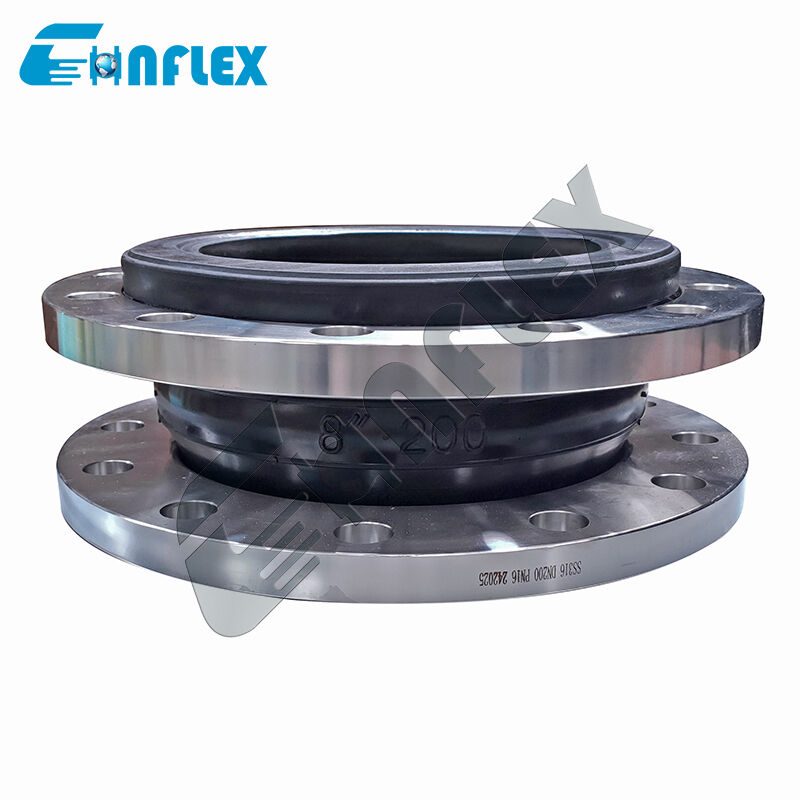

Flange type rubber bellows, also known as pipe expansion joints or flexible connectors, are widely used in industrial pipeline systems to absorb thermal expansion and contraction, compensate installation deviation, isolate mechanical vibration and buffer water hammer impact. Equipped with carbon steel or stainless steel flanges, these customized rubber expansion joints ensure easy installation, stable sealing and long service life.
Available in various customized dimensions and pressure ratings, our rubber bellows can be tailored to different project requirements. EPDM rubber is suitable for water and outdoor environments, NBR for oil medium, and CR for general-purpose air and mixed fluid conditions. All products are strictly quality controlled to guarantee reliable performance in plumbing, HVAC, chemical, petroleum and municipal piping systems.
Performance characteristics
1. Rubber Bellow Catalogue provides excellent axial, lateral and angular displacement compensation, effectively releasing pipeline stress caused by thermal expansion, cold contraction and installation deviation.
2. Rubber Bellow Catalogue features outstanding vibration isolation and noise reduction performance, which effectively blocks vibration and noise transmission between pipelines and equipment.
3. Rubber Bellow Catalogue offers high flexibility and stable sealing performance, ensuring zero leakage under normal working pressure and operating conditions.
4. Multiple rubber material options are available to achieve excellent resistance to water, oil, acid, alkali, aging and abrasion for different working media.
5. Light weight and compact structure allow easy installation, disassembly and daily maintenance without complex tools.
6. Rubber Bellow Catalogue can effectively protect pipelines and related equipment from structural damage, greatly extending the service life of the entire piping system.
Product Specification
| Size |
Length |
Allowable Movements in Operation |
| mm |
inch |
mm |
Axial Compression mm |
Axial Extension
mm |
Transverse Movement
mm
|
Angular Deflection mm |
|
| 25 |
1 |
130/152 |
20 |
12 |
14 |
15° |
| 32 |
1 1/4 |
95/130/152 |
20 |
12 |
14 |
15° |
| 40 |
1 1/2 |
95/130/152 |
20 |
12 |
14 |
15° |
| 50 |
2 |
105/130/152 |
20 |
12 |
14 |
15° |
| 65 |
2 1/2 |
115/130/152 |
20 |
12 |
14 |
15° |
| 80 |
3 |
130/135/152 |
20 |
12 |
14 |
15° |
| 100 |
4 |
130/152 |
20 |
12 |
14 |
15° |
| 125 |
5 |
130/152/165 |
20 |
12 |
14 |
15° |
| 150 |
6 |
130/152/185 |
20 |
12 |
14 |
15° |
| 200 |
8 |
130/152/210 |
20 |
12 |
14 |
15° |
| 250 |
10 |
130/203/230 |
20 |
12 |
14 |
15° |
| 300 |
12 |
130/203/245 |
25 |
16 |
22 |
15° |
| 350 |
14 |
200/255 |
25 |
16 |
22 |
15° |
| 400 |
16 |
200/255 |
25 |
16 |
22 |
15° |
| 450 |
18 |
200/255 |
25 |
16 |
22 |
15° |
| 500 |
20 |
200/255 |
25 |
16 |
22 |
15° |
| 600 |
24 |
260 |
25 |
16 |
22 |
15° |
| 700 |
28 |
260 |
25 |
16 |
22 |
15° |
| 800 |
32 |
260 |
25 |
16 |
22 |
15° |
| 900 |
36 |
260 |
25 |
16 |
22 |
15° |
| 1000 |
40 |
260/300 |
25 |
16 |
24 |
15° |
| 1100 |
44 |
300 |
25 |
16 |
24 |
15° |
| 1200 |
48 |
300 |
25 |
16 |
24 |
15° |
|
Note: If the medium is oil, acidic or alkaline substances, and there are special requirements for the working temperature, you can customize it by sending a letter or drawing. Please specify when ordering
|
Product Details
Production Flow
|
1.Raw material
Top level CR/EPDM/NBR
rubber raw materials,
No recycled rubber
|
2.Plasticating and mixing
Special Formulation for better Bending with Nylon,For Better Strength,Sealing
|
3.Workblanks wraping
Cooper plated steel wire reinforcement prevent pull off
|
|
4.Vulcanizing
Automatic vulcanization machine ensure vulcanization time and pressure
|
5.Inspecting
100% strict inspection is to be responsible for consumers
|
6. Packaging
Protective Packaging for No
Rust and Breakage
|
Application
Rubber Bellow Catalogue are widely used in various fields, including construction, chemical industry, shipbuilding, tap water, gas, chemical pipelines, petroleum pipelines, food pipelines, air conditioning pipelines, and sewage treatment.
Our Services
1.24-hour online
2.Free samples provided
3.Support customization
4.Provide drawings
5.Multiple payment styles to choose from
6.Factory inspection (material, specifications, quantity, pressure, packaging)
7.Long warranty period
8.Suitable packaging for transportation
